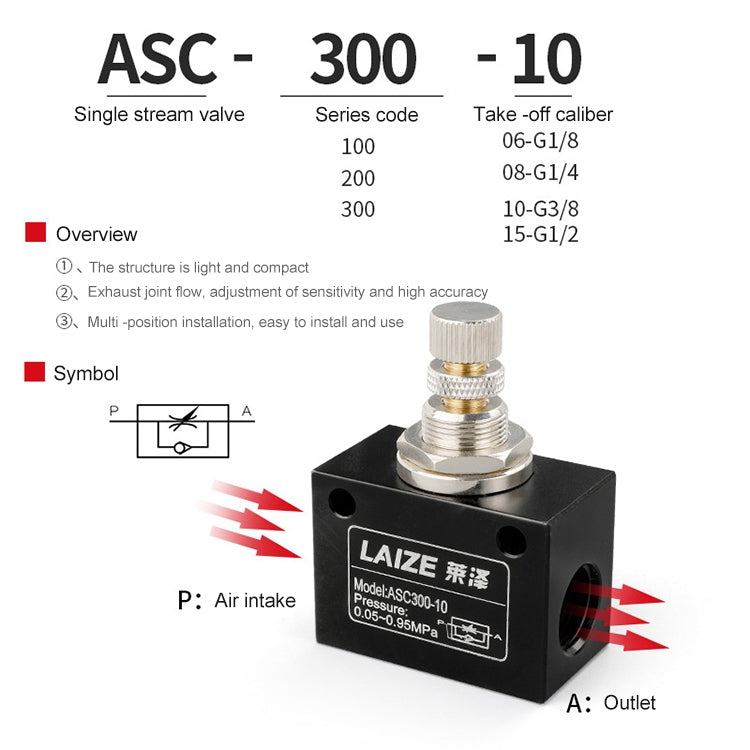

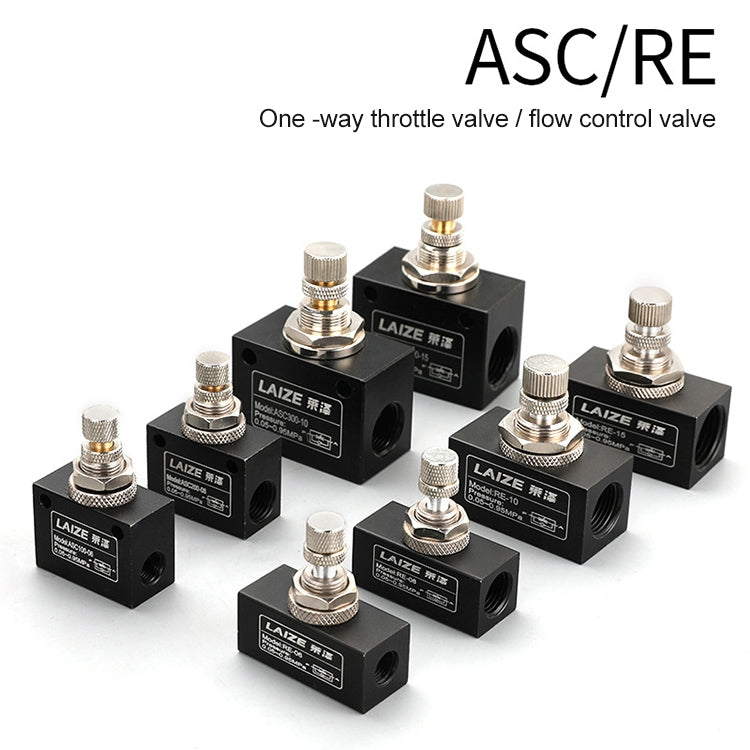

LAIZE Pneumatic Speed Regulating One-way Throttle Valve

1. The structure is light and compact.

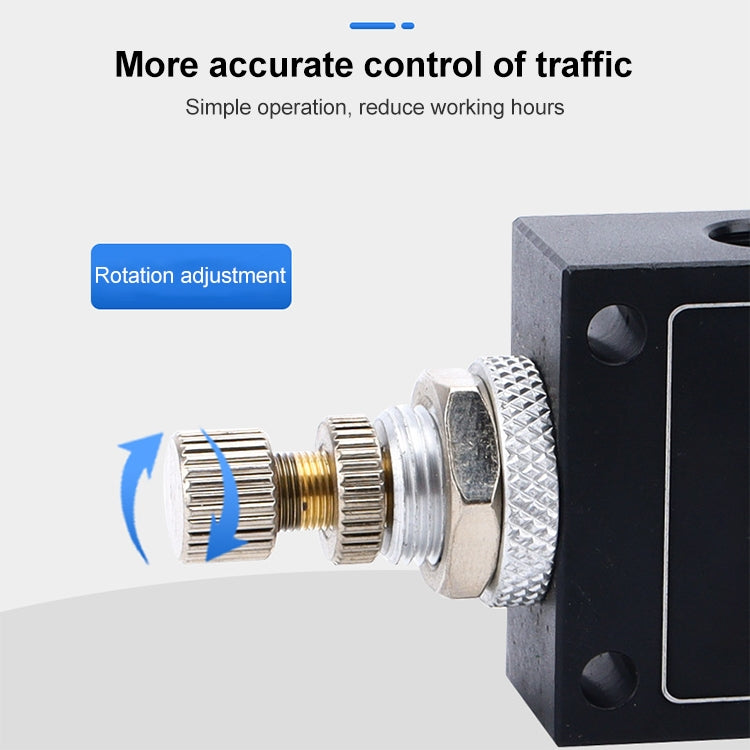

2. Exhaust throttling, sensitive adjustment and high precision.
3. Multi-position installation, easy to install and use.

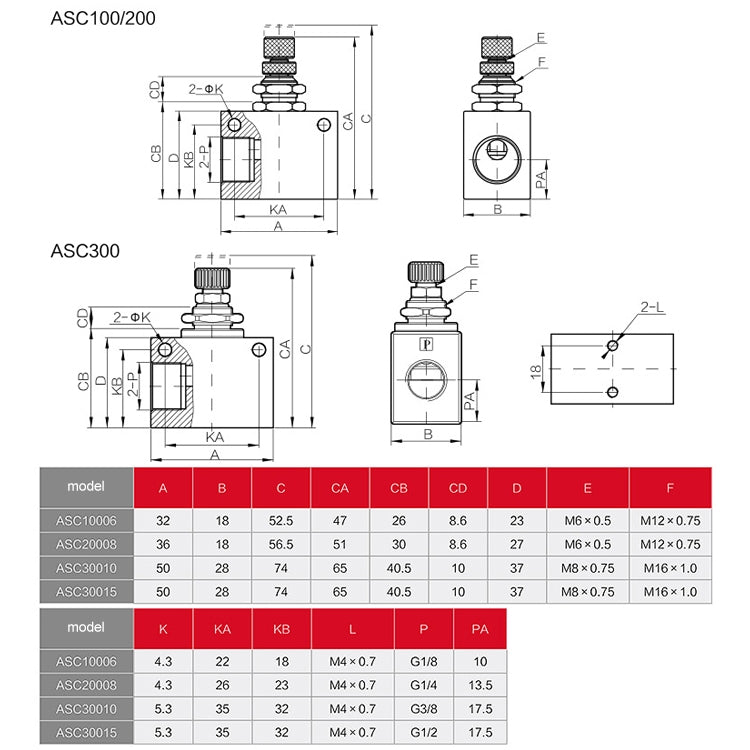

4. One-way throttle valve parameters:
Diameter:

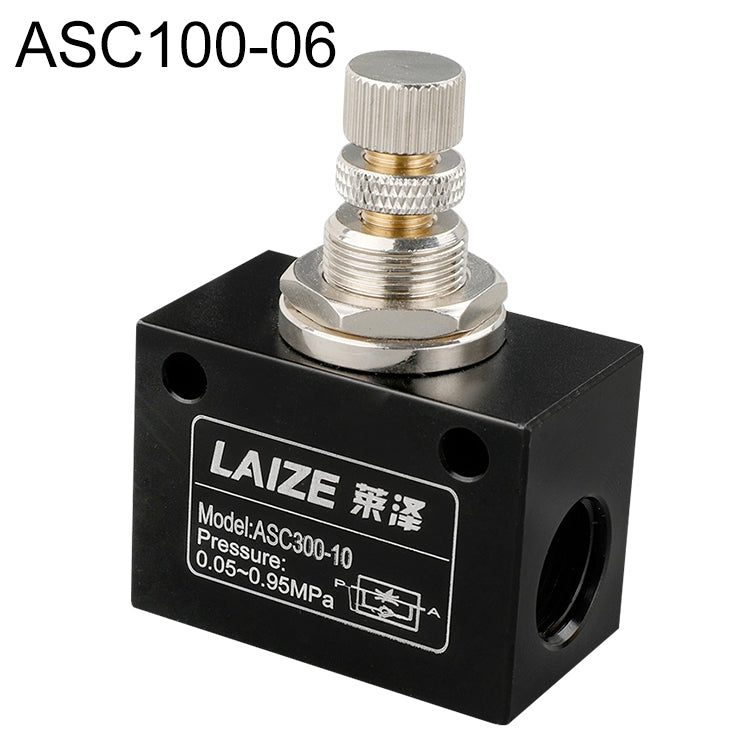

ASC100-06 DN06mm
ASC200-08 DN08mm
ASC300-10 DN10mm
ASC300-15 DN15mm
Pressure: 1MPa
5. Flow valve parameters:
Diameter:

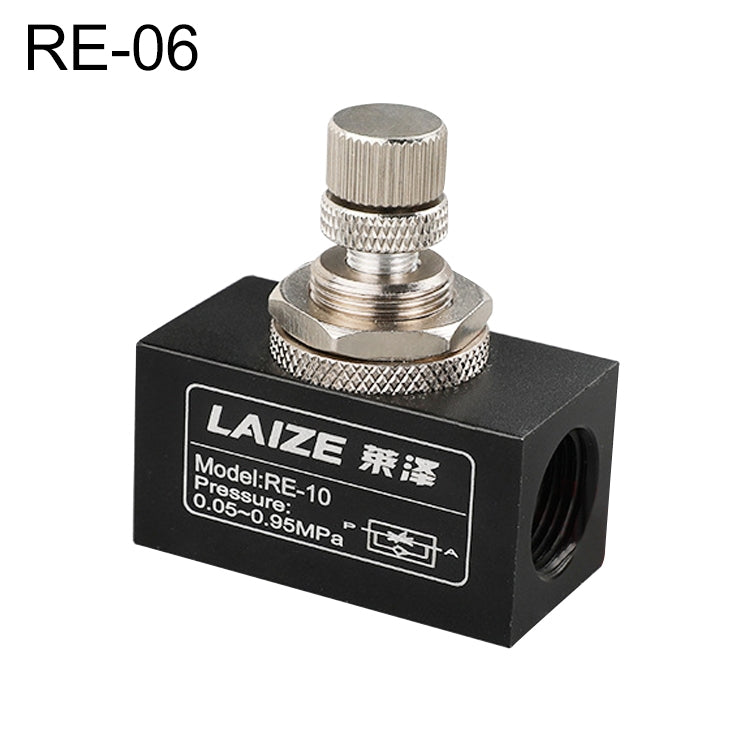

RE-06 DN06mm
RE-08 DN08mm
RE-10 DN10mm
RE-15 DN15mm
Pressure: 0.8MPa

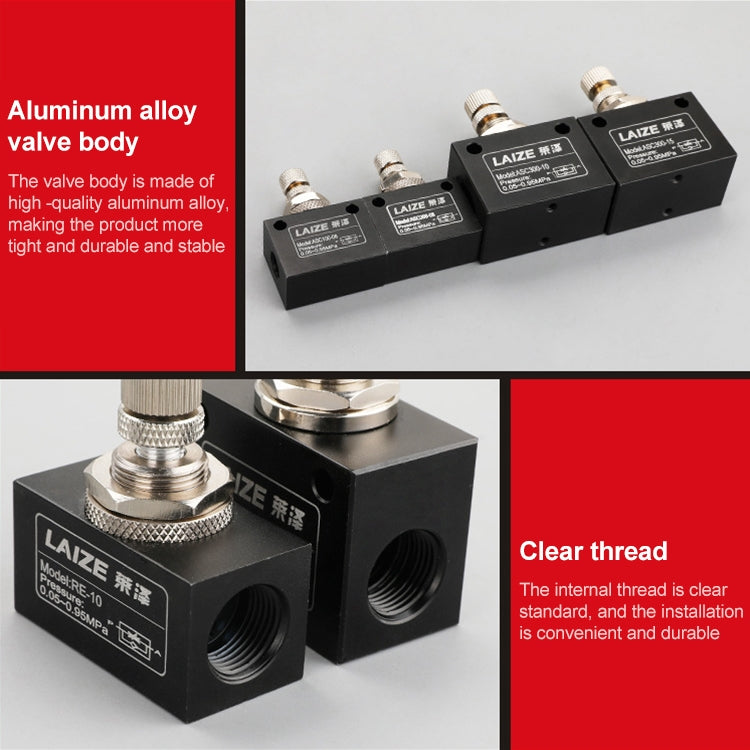

6. Material: aluminum alloy
